Trishul Polygon Turning Machines
Trishul Machine Tools Pvt. Ltd Polygon Turning Machines are faster, more accurate and higher in productivity. The machines themselves are almost completely automated and are simple to operate, leaving behind a flawless high precision finished surface on the machined components. Trishul Machine Tools Pvt. Ltd has two different Polygon Turning Machine Models to choose from that suit specific application and usage

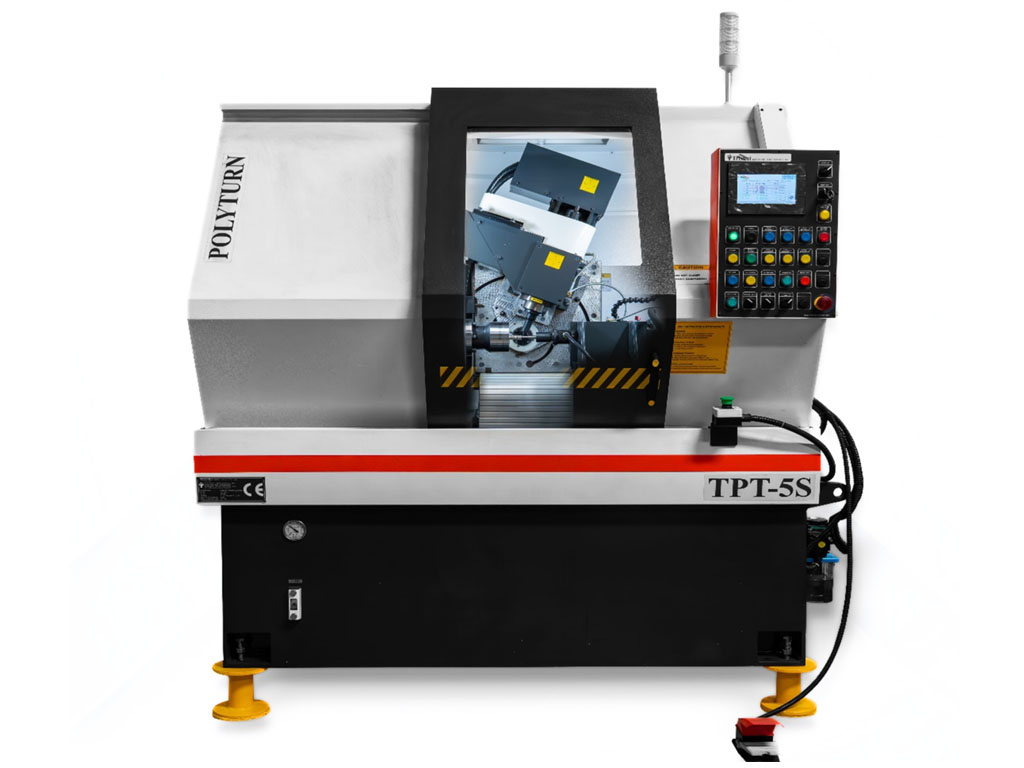

Model: TPT-5S
Another sophisticated model that is primarily useful to machine polar arrayed features like the ones found on ratchets, splines and serrations.
The three axes X, Y, and Z are driven by servomotors. The state of the art motion controllers regulate the precision and accuracy. The work spindle and tool spindle are driven by sophisticated motion controllers utilizing an electronic gear box. The spindles have a very unique feature to stop in sync during power failure. This unique feature ensure that the tool and component are protected during power failure.
Specification
| Details | TPT-5S | TPT-5ST |
|---|---|---|
| Work Holding and Operation | Collet Chuck Ø42 mm- Hydraulic | Collet Chuck Ø42 mm Hydraulic |
| Maximum Chucking Size | Ø42 mm x 580 mm long | Ø42 mm x 580 mm long |
| Maximum Machining Length | 180 mm Max | 180 mm Max |
| Spindle Speed Ratio | 1:1 - 1:99 Electronic | 1:1 - 1:99 Electronic |
| Work Spindle Nose Type and Size | DIN A2-5 | DIN A2-5 |
| Tailstock | -- | MT3 |
| Hydraulic Rotating Cylinder | Ø80 CH | Ø80 CH |
| Work Spindle motor | 4.78 Nm / 2000 rpm | 4.78 Nm / 2000 rpm |
| Tool Spindle motor | 4.78 Nm / 2000 rpm | 4.78 Nm / 2000 rpm |
| Z Axis Stroke -Drive | 225 mm - servo motor | 225 mm - servo motor |
| X-Axis Stroke- Drive | 180 mm - servo motor | 180 mm - servo motor |
| Y-Axis Stroke- Drive | 50 mm - servo motor | 50 mm - servo motor |
| Pos Accuracy and Repeatability | 10 µ | 10 µ |
| Feed Rate | 0.01-0.5 mm per rev | 0.01-0.5 mm per rev |
| Rapid Travel Rate | 10 m/min | 10 m/min |
| Centralized Lubrication | 0.09 kW | 0.09 kW |
| Coolant Pump | 0.10 kW | 0.10 kW |
| Control Voltage | 220 VAC / 24 VDC | 220 VAC / 24 VDC |
| Main Power Supply | 3 Phase, 415 VAC±10% 50 Hz | 3 Phase, 415 VAC±10% 50 Hz |
| Total Connected Load | 5.95 kW (8HP) | 5.95 kW (8HP) |
| Floor Area W x L x H | 1.8m x 2m x 2.1m | 1.8m x 2m x 2.1m |
| Nett Weight | 2200 kg | 2200 kg |
| Gross Weight | 2450 kg | 2450 kg |
