Trishul Polygon Turning Machines
Trishul Machine Tools Pvt. Ltd Polygon Turning Machines are faster, more accurate and higher in productivity. The machines themselves are almost completely automated and are simple to operate, leaving behind a flawless high precision finished surface on the machined components. Trishul Machine Tools Pvt. Ltd has two different Polygon Turning Machine Models to choose from that suit specific application and usage

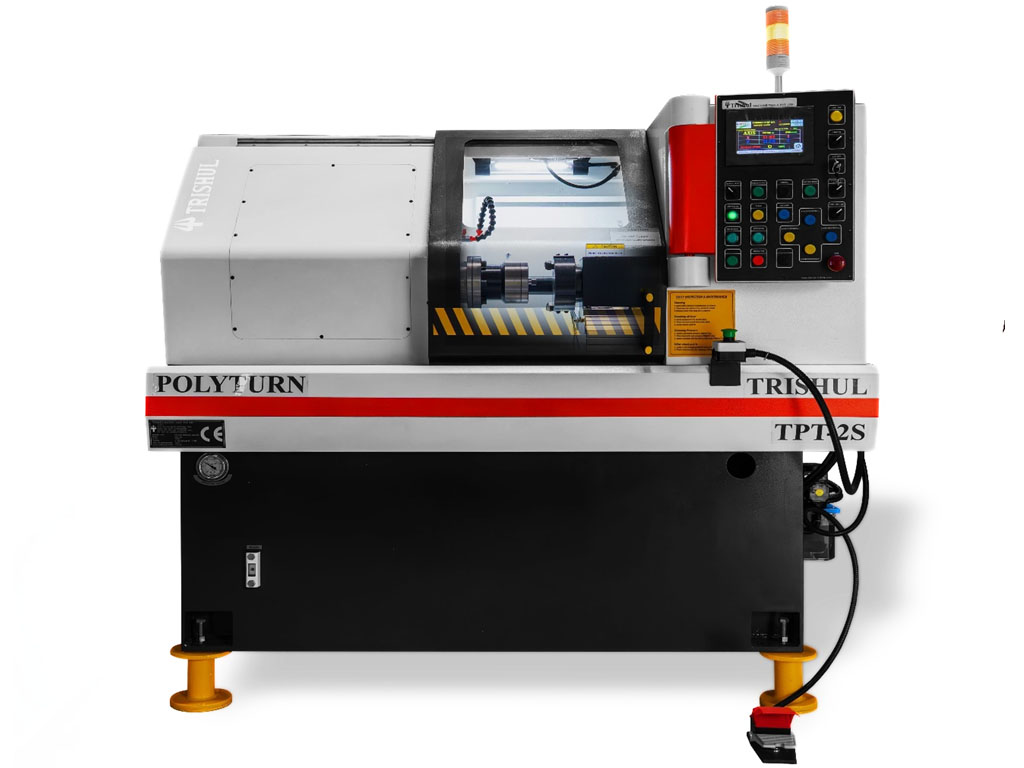

Model: TPT-2S
A versatile, popular and advanced model, the TPT-2S addresses most of the general engineering industry requirements with ease.
The TPT 2S features servo motors for the longitudinal and cross slides, a sophisticated motion controller, and a mechanical gearbox with a fixed spindle speed ratio of 1:2. Designed for even numbered polygons, it can also generate chamfers, tapers, and radii at both the middle and the ends of components, delivering excellent flexibility in machining.
Specification
| Details | TPT-2S TPT-2S-H | TPT-2S-60 TPT-2S-60-H | TPT-2ST |
|---|---|---|---|
| Work Holding and Operation | Collet Chuck Ø42 mm- Hydraulic | Collet Chuck Ø60 mm- Hydraulic | Collet Chuck Ø42 mm Hydraulic |
| Maximum Chucking Size | Ø42 mm x 580 mm long/ Ø42 mm x 2000 mm long | Ø60 mm x 580 mm long/ Ø60 mm x 2000 mm long | Ø42 mm x 580 mm long |
| Maximum Machining Length | 100mm max | 100mm max | 200mm max |
| Maximum Size of Polygon | A/F 85 mm | A/F 110 mm | A/F 85 mm |
| Spindle Speed Ratio | 1:2 Std Mechanical | 1:2 Std Mechanical | 1:2 Std Mechanical |
| Work Spindle Nose Type and Size | DIN A2-5 | DIN A2-6 | DIN A2-5 |
| Main Spindle Motor | TEFC 2.2 kW 3 Ph 1440 RPM | TEFC 2.2 kW 3 Ph 1440 RPM | TEFC 2.2 kW 3 Ph 1440 RPM |
| Main Spindle Drive | Mitsubishi Variable Freq. Drive | Mitsubishi Variable Freq. Drive | Mitsubishi Variable Freq. Drive |
| Tailstock | -- | -- | MT3 |
| Hydraulic Rotating Cylinder | Ø80 CH | Ø80 CH | Ø80 CH |
| Z Axis Stroke - Drive | 100 mm-Servomotor | 100 mm-Servomotor | 200 mm-Servomotor |
| X Axis Stroke - Drive | 140 mm-Servomotor | 140 mm-Servomotor | 160 mm-Servomotor |
| Position Accuracy and Repeatability | 10 µ | 10 µ | 10 µ |
| Feed Rate | 0.01-0.5 mm per rev | 0.01-0.5 mm per rev | 0.01-0.5 mm per rev |
| Rapid Travel Rate | 10 m/min | 10 m/min | 10 m/min |
| Centralized Lubrication | 0.09 kW | 0.09 kW | 0.09 kW |
| Coolant Pump | 0.10 kW | 0.10 kW | 0.10 kW |
| Control Voltage | 220 VAC / 24 VDC | 220 VAC / 24 VDC | 220 VAC / 24 VDC |
| Main Power Supply | 3 Phase, 415 VAC±10% 50 Hz | 3 Phase, 415 VAC±10% 50 Hz | 3 Phase, 415 VAC±10% 50 Hz |
| Total Connected Load | 5.15 kW (7HP) | 5.15 kW (7HP) | 5.15 kW (7HP) |
| Floor Area W x L x H | 1.5m x 1.8m x 1.8m | 1.5m x 1.8m x 1.8m | 1.5m x 1.8m x 1.8m |
| Nett Weight | 1600 kg | 1600 kg | 1600 kg |
| Gross Weight | 1850 kg | 1850 kg | 1850 kg |
